## What is OOXML?

OOXML (Office Open XML) is a file format developed by Microsoft for office documents, based on ZIP and XML. In practice, all Word and Excel files are therefore zipped XML, which means that OOXML processors may also be vulnerable to XML attacks, such as XXE.

---

## Practical example

Start the exercise below and continue reading.

@exercise 3d85b51420f4

---

## Model order

Download the sample order from the lab's address "/static/order.xlsx", open the attacker's code editor, and then drag and drop the file into the /root directory.

![](sanity:image-d5e5c6762bcde54f5fb09466c6d7d741c83a46c5-1030x885-png)

---

## Terminal

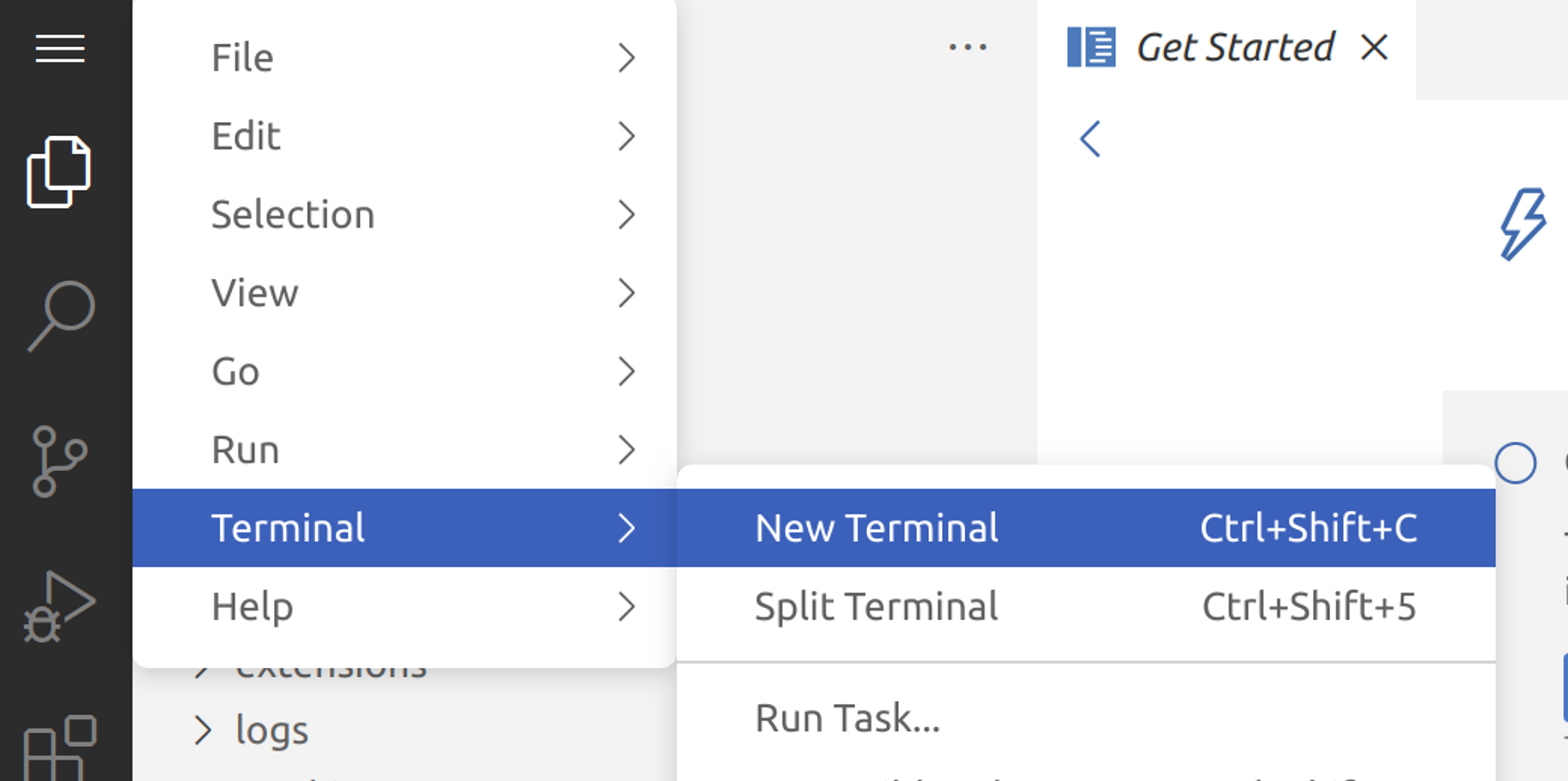

Start the terminal by selecting the hamburger menu in the code editor -> terminal -> new terminal. Go to the /root directory if you are not already there.

![](sanity:image-24db64fe3748ab553fd74d0953dd6091519adaa1-1040x518-png)

```sh
cd /root
```

Run the ls command and you should see that "order.xlsx" is there.

```sh
see
CachedExtensions Machine User coder.json extensions logs machineid order.xlsx web
```

---

## Extract Excel

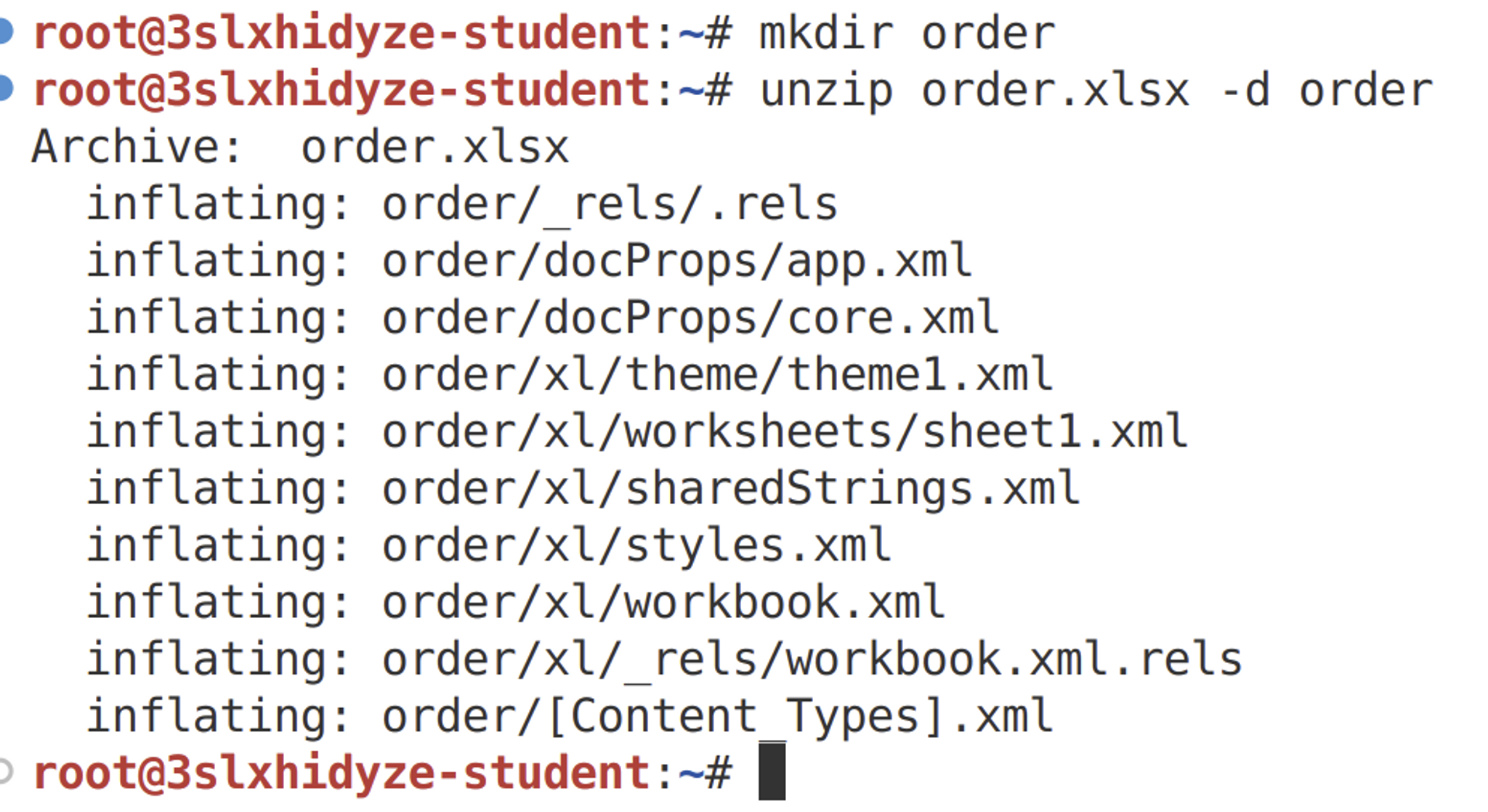

As already mentioned, Excel files are simply zipped XML files. Create a directory named "order" and use the unzip command to extract the file into the directory.

```sh
mkdir order
unzip order.xlsx -d order
```

![](sanity:image-7d7a0cfabfc83ad68c51c5915203bddc9236d176-993x542-png)

---

## Repackaging script

Let's create a small shell script now that we can use to repack Excel. Right-click on the root directory, select "new file" and give it the name "repackage.sh". Enter the following text:

```sh
#!/bin/bash
(cd order && zip -r /root/evil.xlsx ./*)
```

Grant execution rights to the script:

```sh
chmod +x ./repackage.sh
```

---

## Test settings

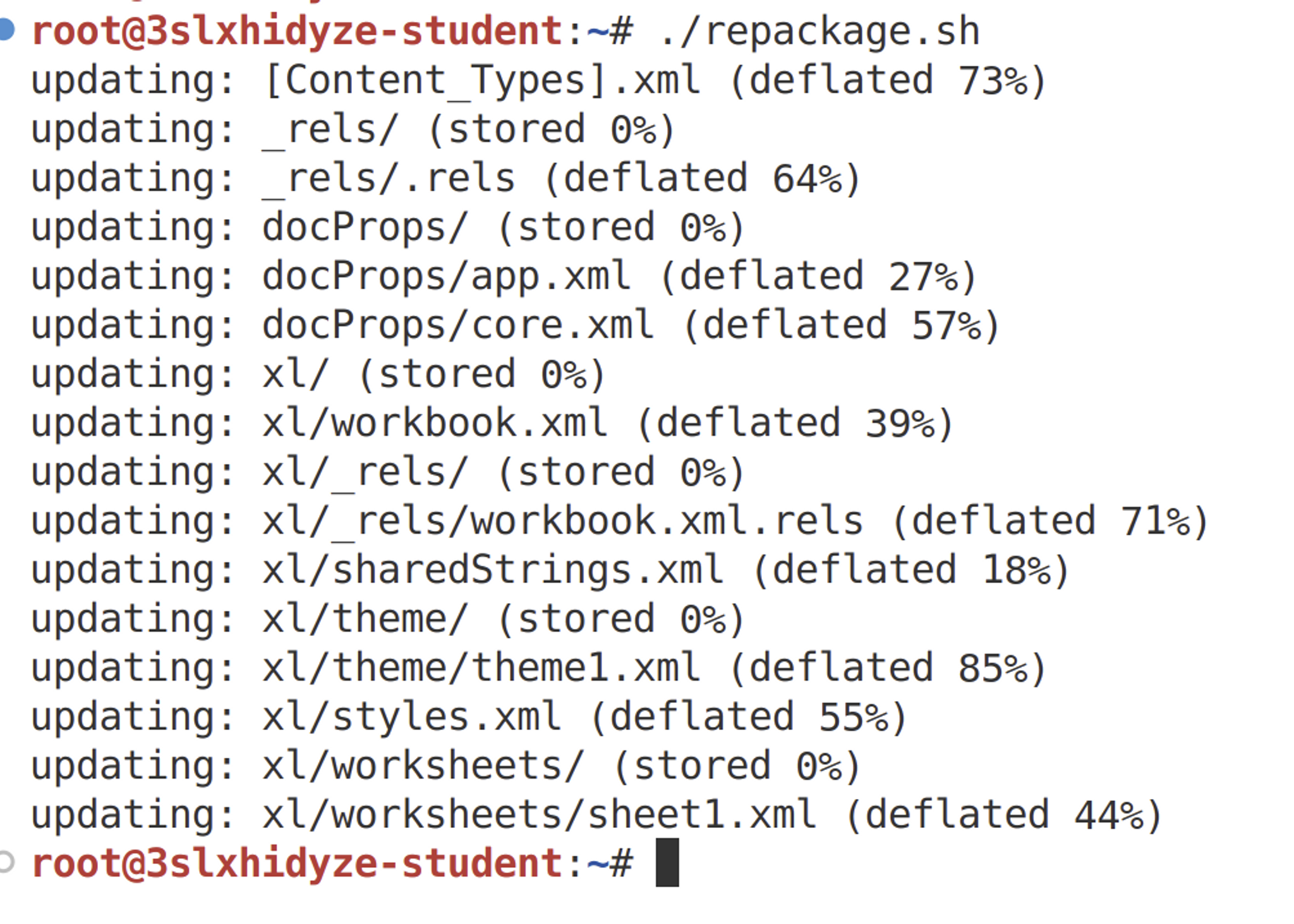

Try that the repackaging script works.

![](sanity:image-8ee70112c5d602c765f9107c66a60c7d703a28df-1004x717-png)

Then download the generated evil.xlsx file. You can do this by right-clicking on 'evil.xlsx' in the code editor and selecting "Download".

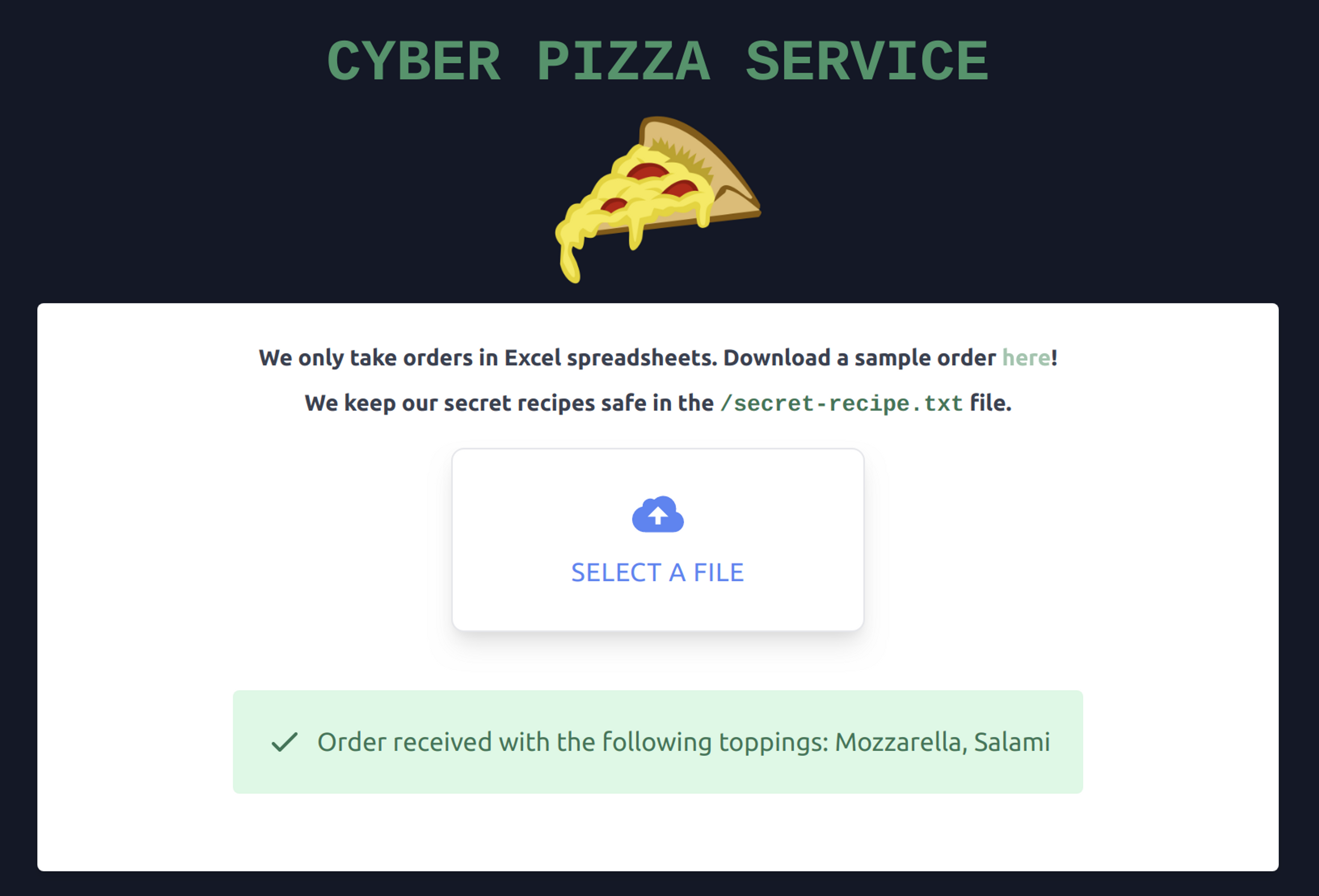

Return now to the pizza service, download the order, and confirm that the order works. Now we have a working foundation for building the attack.

![](sanity:image-6bd722505e1a9a57d6705e95bed89250ef76e87b-1632x1109-png)

---

## Search location

In order to achieve reflected XXE, we need to determine where in the Excel file the words "Mozzarella" and "Salami" can be found. We can use the **grep** command to find this out.

```sh
grep -r Mozzarella ./order
```

![](sanity:image-565815c6bdfb5780fa793eff85872fcbdd854ec5-1041x241-png)

It seems that "order/xl/sharedStrings.xml" is the correct file. Open this file in the code editor.

---

## XXE

By now, you should already know how to proceed from here. If this step doesn't feel familiar, go back to the previous modules in this course.

Create a DTD entity that points to the /secret-recipe.txt file, and then execute that entity instead of Mozzarella or Salami.

As a reminder, the syntax for DTD is:

```xml
<!DOCTYPE root [ ]>
```

And the syntax of the external entity is:

```xml
<!ENTITY name SYSTEM "url or path">
```

And the syntax for executing the entity is:

```xml
&name;
```
